Getting the Helmfile Plugin Working with Akuity CMP

When setting up the Helmfile plugin with the Akuity Config Management Plugin (CMP), users may encounter confusion around how to reference the plugin version in their Application manifests.

By default, the Akuity UI suggests adding the plugin with a version like v1.0, but this version tag is not required — and using it incorrectly can prevent your Helmfile Application from syncing properly.

1. Default CMP Behavior

The Akuity platform supports automatic plugin discovery for Helmfile applications.
If your repository includes a file named either:

helmfile.yaml or .yml

then the CMP will automatically detect and use the Helmfile plugin, even if you do not explicitly reference it in your Application manifest.

This means that the following Application manifest will work without specifying any plugin section:

project: default
source:
  repoURL: https://github.com/myorg/myrepo.git
  path: helmfile_basic
  targetRevision: HEAD
destination:
  server: http://cluster-temp:8001
  namespace: helmfile
syncPolicy:
  automated: {}
syncOptions:
  - CreateNamespace=true

✅ In this setup, the CMP auto-detects the Helmfile plugin since it finds a helmfile.yaml in the repo.

2. Specifying the Plugin Manually

If you prefer to explicitly define the plugin, you can do so by referencing its name under plugin: in your manifest.
In this case, you can include the optional version — but it must match how the plugin was registered in your CMP configuration.

For example:

project: default
source:
  repoURL: https://github.com/myorg/myrepo.git
  path: helmfile_basic
  targetRevision: HEAD
  plugin:
    name: helmfile-v1.0
destination:
  server: http://cluster-temp:8001
  namespace: helmfile
syncPolicy:
  automated: {}
syncOptions:
  - CreateNamespace=true

⚠️ Important Note:
If your CMP plugin configuration does not include a versioned plugin name (for example, helmfile-v1.0), then specifying that version in the Application will fail.

To confirm the available plugin names:

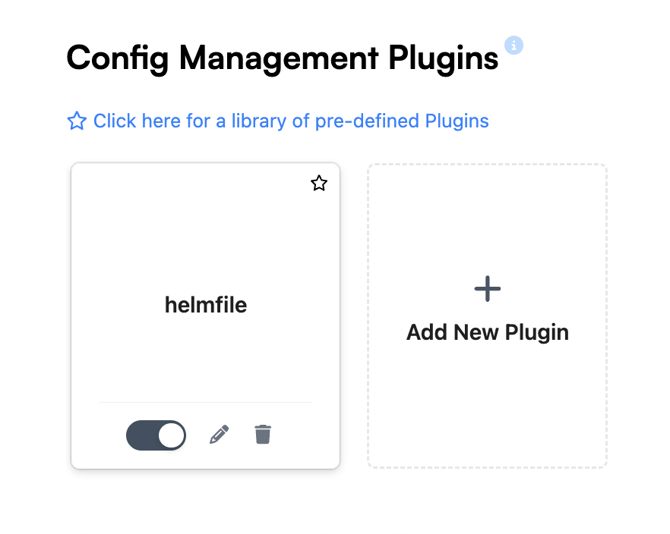

1. Open your Akuity Control Plane.

2. Navigate to Config Management Plugins (CMP).

3. Review the Plugin Name field — use that exact name in your Application manifests.

3. Why It Works Without a Plugin Definition

When you omit the plugin: block entirely, Akuity’s CMP automatically matches based on file structure:

• If a helmfile.yaml or helmfile.yml exists → uses the Helmfile plugin.

• If a Chart.yaml exists → uses the Helm plugin.

• If a kustomization.yaml exists → uses the Kustomize plugin.
